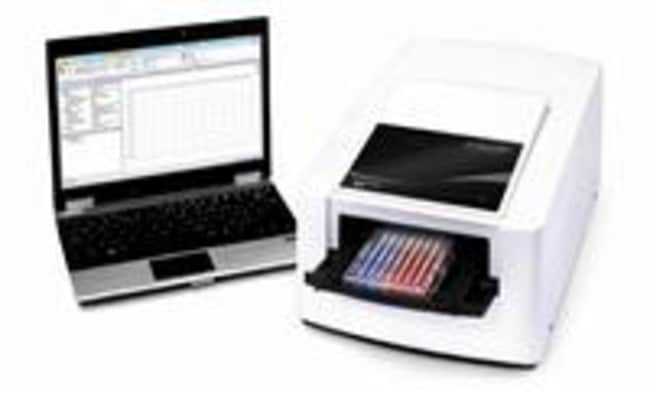

Biochrom EZ Read 2000 Microplate Reader
Description
EZ Read 2000 is the best choice for laboratories that require a microplate reader that can be used for a range of absorbance applications.
This versatile microplate reader is capable of measuring samples in many different microplate formats: 12-, 24-, 48- and 96-well plates.
The EZ Read 2000 uses tuneable wavelength scanning so that any wavelength can be chosen from 340nm up to 800 nm.
The EZ Read 2000 is PC-controlled using new, intuitive Galapagos software for data acquisition and analysis.
Key Features of EZ Read 2000:
- No need for filters! Monochromator optics for measurements from 340 nm to 800 nm enables a wide range of assays to be performed
- Automatic calibration of single channel optical system with self-check and for precision measurements
- Shaking ensures complete mixing of solutions, cells to stay in suspension and colored solutions to be homogenized
- Wavelength scanning for contamination detection, peak absorbance detection and product formation studies
- 12-, 24, 48- and 96-well microplates with standard ANSI SBS footprints can be used for flexible applications
- Real-time reference measurement channel for the improved accuracy
Applications:
- Absorbance measurements: ELISA, protein quantitation, cell proliferation and cell survival assays
- Enzyme kinetic measurements requiring automatic readings at timed intervals
- Wavelength scanning to determine sample purity
- Cell-based assays requiring shaking to maintain cells in solution
- Assays measuring the changes of absorbance of NADH at 340 nm
- Contamination detection, peak absorbance detection and product formation using scanning across a range of wavelengths
Galapagos for EZ Read Software's ‘click and drag' approach makes usability a key feature:
- Galapagos for EZ Read Software makes ‘Click and drag’ approach makes usability a key feature
- Easy to create new methods
- Select only the data you want for data reporting
- So easy you won’t need to export your data into Excel
- Windows 7 & 8 compatibility as well as older Windows OS from XP
Specifications
Specifications
| Detector Type | 2 Silicon Diodes |
| Light Source | Tungsten Halogen Lamp |
| Measurement Speed | 35 sec. |
| Plate Type | 12, 24, 48 and 96-well plates with standard ANSI/SBS footprint |
| Shaking | Linear shaking with 4 modes |
| Software Type | Galapagos Software |
| Wavelength Selection | Monochromator |
| Accuracy | 0.5% and 0.005 OD from 0.1 to 1.0 OD (at 450 nm; 1.0% and 0.010 OD from 1.0 to 2.0 OD (at 450 nm)) |
| Electrical Requirements | 90/250 V, 50/60 Hz, 65 VA |
| Filters | No standard filters |
