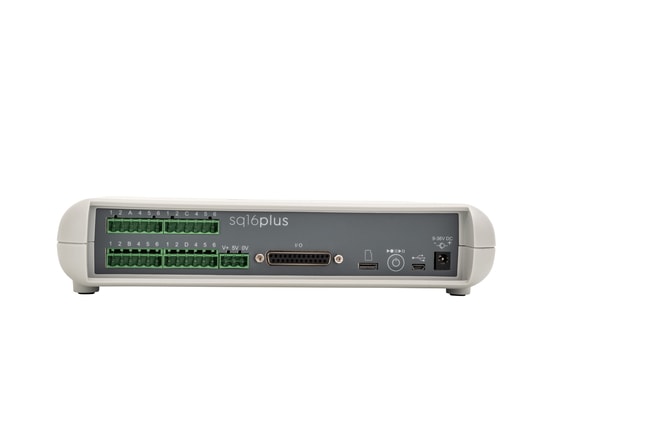

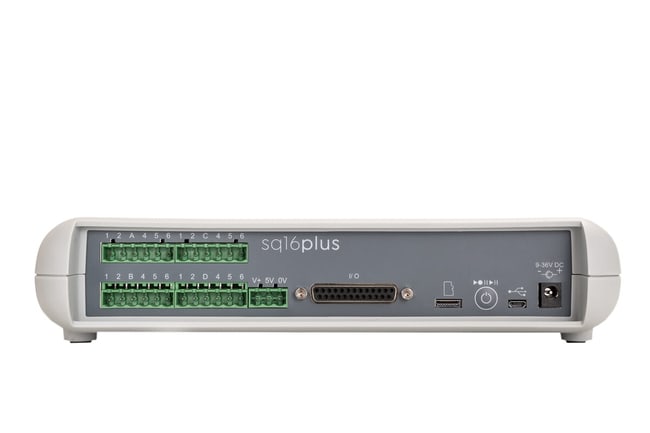

Grant Instruments™ SQ16PLUS - Squirrel sq16plus Data Logger

Product Code.	Battery Life	unitSize
17475122	Up to 6 months all channels logging every 15 minutes	Each

Product Code. 17475122

Brand: Grant Instruments™ SQ16 PLUS

Description

16 single ended inputs or 8 differential inputs, additional A to D converter and inputs for 4 (3 or 4 wire) PT100/PT1000 inputs and 2 fast channels at a max of 100Hz sampling rate.

• 16 single ended or 8 differential inputs.
• Universal input: Yes, including 2, 3 and 4 wire resistance.
• Voltage ranges; differential and single ended: -40 to 60V, -6 to10V, -1.5 to 2.5V, ±300 mV.
• Common mode: 60 V
• Current ranges, differential (requires external 10Ω shunt): 4 to 20 mA, -30 to +30 mA.
• Thermocouple ranges; differential and single: K-type -200 to 1372°C, R-type -50 to 1768°C, B-type 250 to 1820°C, T-type -200 to 400°C S-type -50 to 1768°C, C-type 0 to 2320°C, N-type -200 to 1300°C, J-type -200 to 1200°C
  D-type 0 to 2320°C.
• Resistance ranges, 2,3 & 4 wire: 0-2000R and 0-300000R 2-wire, 0-4000R 3-wire and 0-4000R 4-wire.
• Thermistor ranges: U, UU, Y & S – type – 50 to +150°C & customer specific thermistors.
• Pt100/1000, 2-wire: -200 to 850°C.
• Internal reference temperature: -55 to 150°C.
• Pulse count ranges: 0 to 100 Hz (2 input) 0 to 64 kHz (2 input) 0 to 34,360,000,000 count.
• Digital state/event ranges: 8 state inputs or 1 x 8 bit binary.
• Digital/alarm outputs: 4 open drain FETs, 40V, 0.1A.
• A/D resolution: 32 bit.
• Accuracy: 0.1% of range + 0.1% of reading.
• Clock resolution/accuracy: 1s/10ppm.
• Sampling rates: Up to 100 readings per second on 2 channels.
• Data statistics: Yes from within new SquirrelView plus PC software.
• Calculated channels: Yes, up to 16.
• Memory internal: 16GB, approximately 800 million readings.
• Multi function button: LED Status indication and start/stop.
• Internal battery: 6 x AA cells.
• Battery life: up to 6 months all channels logging every 15 minutes.
• External power: Yes, 8 to 38v dc or via USB.
• Sensor power output: 8-38 V at 150 mA when connected to external power supply.
• Networking Via USB or open thread.
• Modem support: Via USB hub.
• Actions & triggers: Four alarm outputs, fully configurable actions and triggers.
• PC setup: Yes, SquirrelView compatible.
• Front panel setup: Via smartphone app. All essential functionality available via app e.g. channel configuration, start/stop logging etc. Other advanced functions e.g. calculated channels and channel descriptions are available via connection to a PC running SquirrelView.
• Stored setups: 6
• Operating temperature: -20 to 65°C
• Dimensions (w x d x h)/ weight: 257 x 206 x 57.3 mm, 1.5 kg.
  Working environment: – 30 to 65°C, RH up to 95% (non-condensing).

Specifications

• Data Memory: 16 GB, ∼800,000,000 Readings
• Battery Life: Up to 6 months all channels logging every 15 minutes
• Channels: Up to 16
• Accuracy: 0.1% of range + 0.1% of reading
• Operating Temperature (Metric): -20°C to +65°C
• Dimensions (L x W x H): 206 x 257 x 57.3 mm
