Manutan Skate wheel Expandaveyor, heavy duty skate wheel conveyor
Description

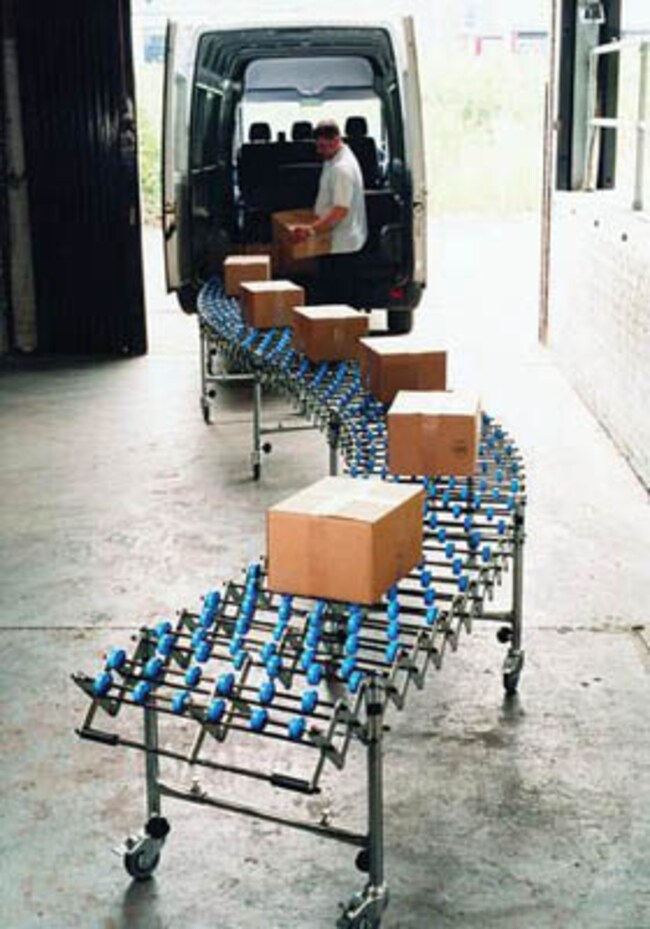

A highly versatile conveyor system for use alone or to supplement existing installations in stores, warehouses, assembly lines and loading/unloading vBright zinc plated steel support frames and lattice straps with plastic roller bearings or skate wheels. Adjustable telescopic legs fitted at every 1. 5m of expanded length. O/A width: track width plus 62mm. Pitch: 125mm when expanded. Plastic roller bearings - 50mm diameter shock proof, rigid PVC with double ball race and ball bearings. Plastic skate wheels - 48mm diameter shock proof PVC with double ball race, and steel axles with PVC covers. Adjustable support legs - All fitted with 100mm diameter braked castors. 125kg capacity Expandaveyor support legs have additional lattice knee bracing. Height 650-1000mm.
- Track width: 600mm
- Closed length: 2.0mCapacity (kg/m): 125m
