Motic™ Moticam 4000

Product Code. 17891364

Brand: Motic™ 1100600101522

Description

The Moticam 4000 allows you to make live measurements, notes, image adjustments and more, directly on the HDMI screen, without the need for a computer.

• Discover our newest Moticam 4000, designed for efficiency and to output fast live images at 4K (3840 x 2160 pixels).
• Connect it through the HDMI port to a screen and display your live image.
• With the use of the on-board software and a USB mouse, you can make live measurements, notes, image adjustments and more, directly on the HDMI screen, without the need for a computer.
• Thanks to its integrated SD card slot and USB ports, saving images won't require a computer, making it easy to save and organize your images and videos.
• You can also connect your camera through USB to a Windows, or Mac computer, and even display your samples simultaneously.
• CMOS IMX334 size 1/1.8 in.
• Capture resolution 8MP (3840 x 2160 pixels).
• Live display mode through USB and HDMI 4K (3840 x 2160 pixels)
• Software: Motic Images Plus 3.1 for Windows and OSX, on-board software.
• Functions: Including exposure, gain, white balance, color adjustment, sharpness and denoising control, zoom, mirror, comparison, freeze, measure, cross, browse function.
• Package includes All in one box concept: CS ring adaptor, focusable lens, 30 mm and 38 mm eyepiece adapters, Motic 4-dot calibration slide, macro calibration card, macro tube, universal power supply, HDMI cable, USB cable, USB Mouse and USB Pendrive with Motic Images Plus 3.1

Specifications

• Type: Digital HDMI camera for microscopy
• Autoclavable: Not Autoclavable
• Camera Type: 4k Camera
• Certifications/Compliance: EMC Directive 2014/30/EU
• Color: White
• Compatibility (Operating System): Windows 7/8/10, MAC OSX, or higher

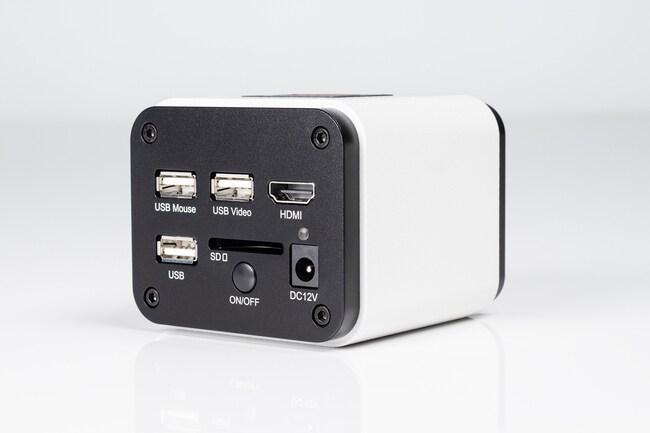

• Connector Types: HDMI and USB ports
• For Use With (Application): Digitalize images from a microscope
• For Use With (Equipment): To be used with a trinocular microscope and C-mount adapter
• Includes: CS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, Motic 4-dot calibration slide, macro calibration card, macro tube, universal power supply, HDMI cable, USB cable, USB Mouse and USB Pendrive with Motic Images Plus 3.1
• Material: Aluminium
• Memory: No internal memory, a SD card is needed
• Operating Temperature (Metric): From -10°C to +50°C Non-Condensing
• Pixels: Pixel size 2.0 x 2.0 μm
• Port Type: USB - HDMI
• Power Supply Details: 12 V External Power supply
• Quantity: 1
• Required Accessories: C-mount adpater to be purchased separatly to mount the camera on a trinocular microscope
• Resolution: 8 MP (3840 x 2160 pixels)
• Sensor Types: CMOS IMX334
• Size: 1/1.8 in.
• Sterility: Non-sterile
• Voltage: 100/240 V
• Warranty: 2 years warranty
• Frequency (Frame Rate): HDMI: 4K (3840 x 2160) at 30 fps (*); USB: 4K (3840 x 2160) at 20 fps (*)
