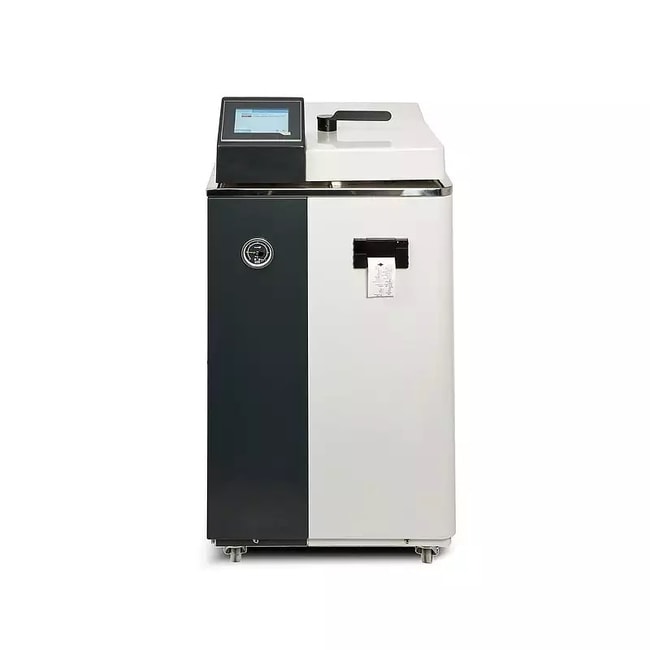

Astell Laboratory standard 63L Classic Toploading Autoclave Pack

Product Code.	Controller Type	unitSize
30245620	VGA	1 set

Product Code. 30245620

Brand: Astell AMA440SC

Description

A manually water filled autoclave equipped with popular options used in most laboratories: Load Sensed Process Timing, Fan Cooling (External) and Condensate Bottle, also including Packaging and Delivery.

• The autoclave also features: Timed/pulsed freesteaming. 5 pre-set cycles.
• Easy closure system.
• USB interface.
• Electro polished stainless steel pressure vessel.
• Over temperature cut-out.
• Thermocouple entry port.
• Cool lock protection for fluid cycles.
• Pressure gauge.
• Safety valve test program. 5.7 in. colour touchscreen controller.
• The Laboratory Standard Compact Classic Toploader comes equipped with load sensed process timing and fan cooling, providing the cooling and enhanced liquid handling capabilities required by most laboratories.
• Further optional upgrades are available to enhance its capabilities further for more specialist requirements.
• The 63 L Compact top loading autoclaves are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single phase power supply.
• All compact autoclaves are fitted with castors for easy movement.
• The Classic version requires manual water-fill and during the cycle condensate leaves the vessel via a silicone tube that can be connected to a heat-resistant bottle.
• 316 stainless steel electropolished chamber
• Base shelf within the chamber
• Calibration and Validation available
• Castor mounted for easily moving the unit
• FDA 21 CFR part 11 software option available
• Cooling Lock
• Fast action door closure mechanism
• Five password levels to stop lower level users making changes
• Five pre-programmed cycles and up to 50 available
• Holdwarm / Delayed Start feature
• No mains water supply or drain necessary
• Optimised for low water and power consumption
• Over Temperature Protection
• Pressure Gauge
• Self contained design with no installation required - just fill it with water and plug it in and the machine is ready to be used
• Standard Astell safety features
• Temperature range of 100°C to 138°C (0.2 - 2.4 Bar)
• Timed/Pulsed Free Steaming
• Fully programmable 5.7 in. Colour Touch Screen controller
• USB interface for downloading controller data
• Validation Port

Specifications

• Autoclavable: Not Autoclavable
• Controller Type: VGA
• Amperage: 13 A
• Certifications/Compliance: PED 2014/68/EU, ISO 17025:2005 (UKAS), IEC 61010, ISO9001:2015
• Color: Black and White
• Capacity (English): 13.85 gal.
• Capacity (Metric): 63 L
• Depth (Metric) Chamber: 668 mm
• Diameter (English) Chamber: 13.622 in.
• Depth (English) Chamber: 26.31 in.
• Diameter (Metric) Chamber: 346 mm
• For Use With (Application): Sterilizing Glassware, Sterilizing Instruments, Sterilizing Liquids, Sterilizing Media, Sterilizing Waste
• Length (Metric): 705 mm
• Product Type: Autoclave, Top-loading Compact
• Temperature (English): 221°F to 280°F
• Temperature (Metric): 100°C to 138°C
• Display: VGA (640x480) colour TFT + analogue resistive touchscreen
• Weight (Metric): 130 kg
• Electrical Requirements: 230V, 13 A, 50/60Hz, (N+E)
• Frequency: 50/60 Hz
• Interface: VGA (640x480) colour TFT + analogue resistive touchscreen
• Operating Pressure: 0.2 to 2.4 bar
• Programmability: Yes
• Quantity: 1 Ea.
• Voltage: 230 V
• Sterility: Non-sterile
• Shipping Weight (Metric): 147 kg
• Dimensions (L x W x H): 705 x 530 x 1070 mm
