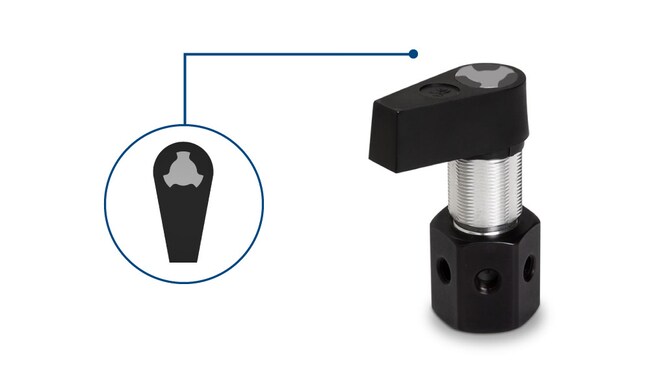

Hamilton™ HVXL6-6 VALVE

Product Code. 11530312

Brand: Hamilton™ 86916

Description

Hamilton (HV) Plug Valves provide an economical and flexible method of custom-building a fluid flow control system, from a simple on/off valve to a more complex multi-valve arrangement, using a combination of loop and distribution valves.

Specification Sheet

• Valve Model – 6-6

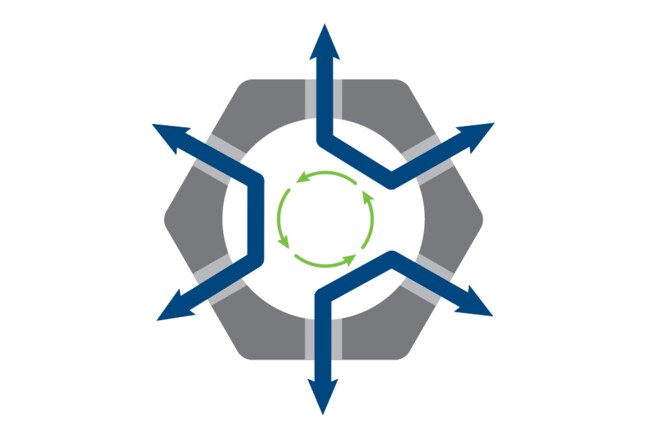

• Valve Model Description – Loop Flow Path 6-ports
• Fluid Path – PTFE/CTFE
• Valve Size – HVX
• Nominal Port Diameter – 0.040 inch (1 mm)
• Valve Outer Body Dimension – 1 inch (25.4 mm)
• Housing Material – Aluminum
• Total Dead Volume – 7.5 μL
• Actuated – Manual
• Break Away Torque – 65 in oz. (455 mNm)
• Panel Mounting – Yes
• Panel Thickness – 0.625 inch (15.9 mm)
• Thread Depth – 0.219 inch (5.6 mm)
• Threaded Connection – ¼-28
• Operating Temp High – 38 °C (100 °F)
• Operating Temp Low – -12 °C (10 °F)
• Operating Pressure – 0 to 100 psig (0 to 6.9 bar)
• Storage Temp High – 38 °C (100 °F)
• Storage Temp Low – -18 °C (0 °F)

Specifications

• Actuation: Manual
• Type: HVXL6-6 VALVE
• No. of Ports: Loop Flow Path 6 Ports
• Stator Material: PTFE/CTFE
