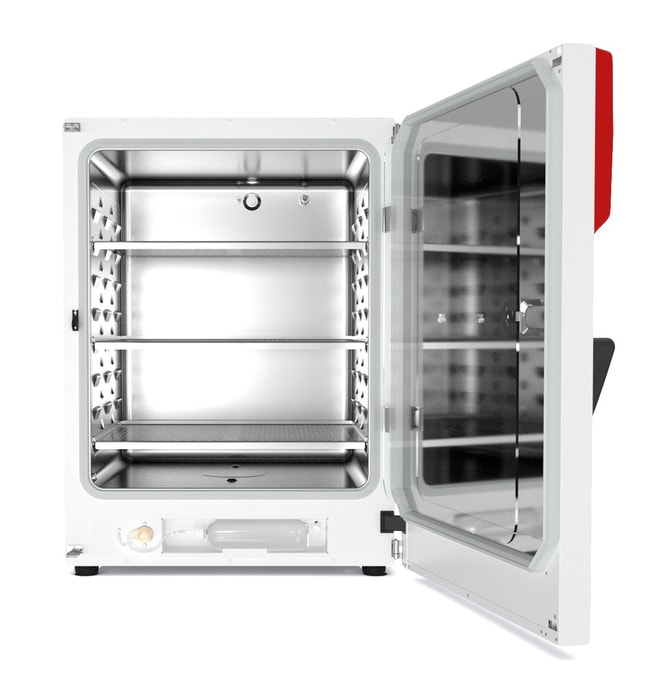

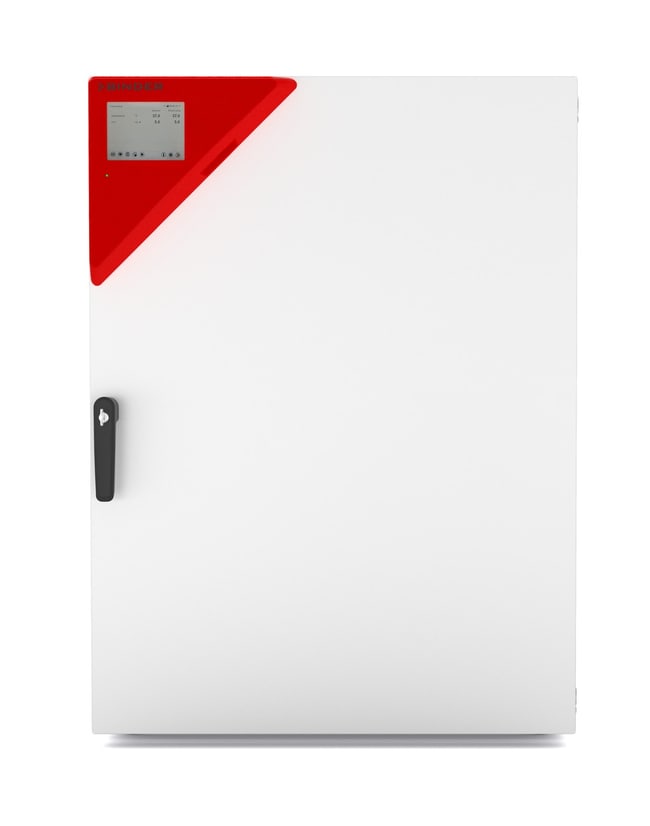

BINDER™ CO2 Incubator Series CBF

Product Code. 31741125 Shop All BINDER Products
Change view
Click to view available options
Dimensions (D x W x H) Interior:
500 x 560 x 600 mm
575 x 620 x 750 mm
No. of Shelves:
3 std./6 max.
3 std./8 max.
Model:
CBF170
CBF170-O
CBF260
CBF260-O
Unit Size:
Each
4 product options available for selection
Product selection table with 4 available options. Use arrow keys to navigate and Enter or Space to select.
Product Code. Dimensions (D x W x H) Interior No. of Shelves Model unitSize
31741125 575 x 620 x 750 mm 3 std./8 max. CBF260 Each
31741148 500 x 560 x 600 mm 3 std./6 max. CBF170 Each
31741135 500 x 560 x 600 mm 3 std./6 max. CBF170-O Each
31741119 575 x 620 x 750 mm 3 std./8 max. CBF260-O Each
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 4 options available.
4 options
This item is not returnable. View return policy
Product Code. 31741125 Supplier BINDER™ Supplier No. 90400215

Please to purchase this item. Need a web account? Register with us today!

This item is not returnable. View return policy

Description

Series CBF - CO2 incubators with hot air sterilization and humidity regulation.

The BINDER CBF is a high-end CO2 incubator with humidity control, suitable for all sensitive incubation applications in GMP environments. It ensures consistent results, including in cell-based assays with multiwell plates. This BINDER incubator is even suitable for complex cultivation experiments or individual environments with hypoxic conditions, thanks to its comprehensive assortment of options and accessories.

  • Safe - cell cultures receive maximum protection against contamination
  • Reliable - constant well-being conditions for the cells
  • Smart - simple routine cleaning and convenient operation
  • Economical - efficient operation without consumables

IMPORTANT FEATURES

  • Contamination-safe humidification system without water pan
  • Tried-and-tested anti-contamination concept with 180°C hot air sterilization
  • Hot-air sterilizable CO2 sensor with single-beam infrared technology
  • Seamless inner chamber made of stainless steel with flanges as shelf support system
  • Fanless interior with Venturi CO2 gas mixing nozzle
  • Intuitive touchscreen controller
  • Internal data logger, measured values can be read out in open format via USB
  • Troubleshooting system with visual and acoustic alarms
  • Interfaces: Ethernet, USB, zero-voltage alarm contact
  • Fail-safe CO2 system for protecting the pH of cell cultures

OPTIONAL EQUIPMENT

  • O2 control with O2 control ranges: 0.2 to 20 vol.% O2 or 10 to 90 vol.% O2
  • Multi-sectional glass doors with special shelves for dividing up the space to accommodate different experiments
  • Stacking adapter for secure, space-saving installation
  • Gas tank changer for connecting two gas tanks to one or two incubators

Specifications

Controller Type MB 2
Capacity (Metric) 267 L
Chamber Material Stainless Steel (304/1.4301)
CO2 Concentration Range 0 to 20%
CO2 Sensor Technology IR Sensor
Convection Type Natural
Material Stainless Steel
No. of Places 110
No. of Shelves 3 std./8 max.
Plug Type EU
Relative Humidity 50 to 95%
Temperature Range (Metric) +6 above ambient to 50°C
Type CO2 Incubator
Display Yes
Model CBF260
Temperature Uniformity 0.4 ± K
Dimensions (D x W x H) Interior 575 x 620 x 750 mm
Height (Metric) 1020 mm
Depth (Metric) Interior 575 mm
Weight (Metric) 126 kg
Voltage 200/230 V
Frequency 50/60 Hz
