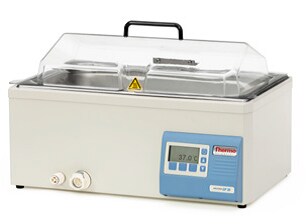

Thermo Scientific Precision General Purpose Water Baths

Thermo Scientific Precision General Purpose Water Baths


Thermo Scientific Precision General Purpose Water Baths

Capacity, performance, and ease-of-use in a compact design

Ideal for industrial, clinical, pharmaceutical or biomedical applications

Powerful technology in a compact design.

Thermo Scientific Precision General Purpose Water Baths are rugged, high performance baths that are designed to maintain water temperature from ambient to 100°C. Ideal for a wide range of lab applications, capacities range from 2 L to 28 L, including shallow models. Over-temperature safety circuitry is designed to prevent thermal runaway, while new auto-on and auto-off timers allow you to optimize operation schedules. Benefit from outstanding chemical and corrosion resistance with epoxy powder-coated exterior, and easily clean the chamber with its seamless stainless-steel interior.

Key Features:

  • Capacity ranges from 2 L to 28 L
  • Front-mounted controls offers easier access and safer operations
  • Compact footprint optimizes laboratory bench space

Removable cover lifts to 90° stay-open position or can be removed completely by a quick release to accommodate large glassware.

Each bath includes a polycarbonate lid (Stainless steel covers are available as accessories for all models).

Features

Product Specifications

  • Shallow-form model: TSGP02S - ideal for heating samples in micro centrifuge tubes and for other molecular biology procedures
  • Dual-Chamber Model: TSGP15D - features two chambers with separate controls
  • Model TSGP10; TSGP20; TSGP28; TSGP15D - includes quick disconnect drain to empty reservoir
  • Lid Included

Each bath includes a diffuser tray, polycarbonate lid (Stainless steel covers are available as accessories for all models) and duck!

Compact:

  • Save valuable bench space with smaller footprints on general purpose baths, compared to previous models.

Timers:

  • Automatically preheat or turn off your bath for efficient work scheduling with new auto-on and auto-off timers.

Intuitive control:

  • Simplify parameter setting and monitoring with new icon-based controller interface to help ensure safe operation.

Safety features:

  • Protect your work with safety features including audible alarm, digital over-temperature protection, low-level detection and high-temperature cut-offs.
  • With their rugged construction and advanced microprocessor technology, Thermo Scientific Precision water baths are a smart choice for your smart lab.
Specifications

Product Code

15395837

15375857

15385857

15395857

15305867

15315867

15325867

Temperature setting

Digital

Digital

Digital

Digital

Digital

Digital

Digital

Capacity (L)

2

2 shallow

5

10

20

28

5 + 15 Dual

Temperature range (°C)

amb. +5 to 90

amb. +5 to 100

amb. +5 to 100

amb. +5 to 100

amb. +5 to 100

amb. +5 to 100

amb. +5 to 100

Temperature stability @70°C

±0.1°C

±0.1°C

±0.1°C

±0.1°C

±0.1°C

±0.1°C

±0.1°C

Temperature uniformity@70°C

±0.2°C

±0.2°C

±0.2°C

±0.2°C

±0.2°C

±0.2°C

±0.2°C

Temperature display resolution (°C)

±0.1°C

±0.1°C

±0.1°C

±0.1°C

±0.1°C

±0.1°C

±0.1°C

User adjustable over temperature alarm

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Fixed thermal cut-out

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Advanced dry start / run dry protection

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Programmable temperature presets

4

4

4

4

4

4

4

Calibration points

2

2

2

2

2

2

2

Supply voltage (V) and frequency (Hz)

100-120/200-240 VAC; 50-60Hz

100-120/200-240 VAC; 50-60Hz

100-120/200-240 VAC; 50-60Hz

100-120/200-240 VAC; 50-60Hz

100-120/200-240 VAC; 50-60Hz

100-120/200-240 VAC; 50-60Hz

100-120/200-240 VAC; 50-60Hz

Heater Output (W)

200W

300W

300W

800W

1200W

1200W

300W & 800W

Work area dimensions (L x W x H) mm

138 x 155 x 150

153 x 300 x 65

154 x 300 x 150

301 x 330 x 150

297 x 500 x 150

297 x 500 x 200

300 x 154 x 150
& 301 x 330 x 150

External dimensions (without cover) (L x W x H) mm

230 x 199 x 233

246 x 355 x 232

246 x 355 x 232

393 x 383 x 233

392 x 555 x 233

392 x 555 x 282

392 x 587 x 233

Countdown timer with audible alarm (1 to 999 mins)

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Count up timer with audible alarm (1 to 999 mins)

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Drain tap

-

-

-

Yes

Yes

Yes

Yes

Polycarbonate gabled cover included

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Warranty

2 years

2 years

2 years

2 years

2 years

2 years

2 years

Overall power consumption 230V (kW)

0.25

0.35

0.35

0.8

1.4

1.4

1.15

Accessories



2 L Bath

2 L Shallow Bath

5 L Bath

10 L Bath

20 L Bath

2 8L Bath

Dual 5 L and 10 L Bath

Product Code

15395837

15375857

15385857

15395857

15305867

15315867

15325867

Stainless Steel Test Tube Rack

-

-

-

-

(15395897)

(15395897)

-

Stainless Steel Petri Dish Rack

-

-

-

-

(15385897)

(15385897)

-

Half Rack - White 36x13mm

(15305907)

(15305907)

(15305907)

(15305907)

(15305907)

(15305907)

(15305907)

Half Rack - White 36x16mm

-

(15315907)

(15315907)

(15315907)

(15315907)

(15315907)

(15315907)

Half Rack - White 20x20mm

-

(15325907)

(15325907)

(15325907)

(15325907)

(15325907)

(15325907)

Half Rack - White 16x25mm

-

(15335907)

(15335907)

(15335907)

(15335907)

(15335907)

(15335907)

Half Rack - White 9x30mm

-

(15345907)

(15345907)

(15345907)

(15345907)

(15345907)

(15345907)

Full Rack - Red 72x13mm

-

(15355907)

(15355907)

(15355907)

(15355907)

(15355907)

(15355907)

Full Rack - Red 72x16mm

-

-

(15365907)

(15365907)

(15365907)

(15365907)

(15365907)

Full Rack - Red 40x20mm

-

-

(15375907)

(15375907)

(15375907)

(15375907)

(15375907)

Full Rack - Red 40x25mm

-

-

(15385907)

(15385907)

(15385907)

(15385907)

(15385907)

Full Rack - Red 24x30mm

-

-

(15395907)

(15395907)

(15395907)

(15395907)

(15395907)

Replacement Polycarbonate Gable Cover

(15345887)

(15355887)

(15355887)

(15365887)

(15375887)

(15375887)



Stainless Steel Gable Cover

(15385887)

(15305897)

(15305897)

(15315897)

(15325897)

(15325897)
